Fume Extractor Lightweight 70 W 195 m³/h Noise Canceling Portable
With Filter
Features:
1, Filter rate is more than 99.99%, and bad smell remove rate more
than 80%;
2, Noise canceling design,quieter working place
3, Multiple filtration design,rapid purification
4, Durable mental frame structure
5, Universal smoking arm,easy operation
6, Its filter element adopts the return structure to hold dust on
four sides, which greatly increases the dust capacity;
7, Replaceable efficient filter
Specifications:
| Model | Moxibustion fume extractor FM180 |
| Power | 70 W |
| Air flow | 195 m³/h |
| Dimension | 280*280*470 mm |
| Voltage | 110/220 V |
| Noise | 55 db |
| Weight | 9 kg |
| Filters | 3 layers |
| Size and Frequency to replace | Size and Frequency to replace |
| Pre-filter | 501*178*9 mm 7-60 days |
| HEPA filter | 193*193*196.5 mm 3-6 months |
| Active carbon filter | 238*238*198mm 6-12 months |
| Application | Dental Aerosol extractor, hospital and beauty parlor |
Product instruction:
1, 3 layers filters can be separate replace,high efficient
sterilization make work place safer
2, The filter element adopts a return structure, which can hold fumes
on all sides.
3, Various types of materials make you have more choices to smole
hood,silicone hood acrylic hood alloy hood
4, The machine have self inspection system, will alarm when filters
and UV lamps or other department can't work.4, Mental body structure, strong and durable;
5, Frequency conversion super saving, brushless DC motor stable
performance, long life machine;
FAQ:
Q: Is the product influenced by the environment that affects the
smoking effect?
A: Yes, such as fan flow, air conditioning (air flow); Long
distances can also seriously affect the effects of smoking
Q: Does the size of the pipe affect the effectiveness of smoking?
A: Yes, and the impact is very large, because the increase of the
bend resistance will be stronger, resulting in the weakening of
suction, should be as far as possible to reduce the bending of the
pipeline.
Q: Can smoking pipes be shortened or lengthened at will?
A: It can be shortened or lengthened appropriately; But too long
fixation is relatively poor, because there is no support point,
easy to sag, it is recommended that the length of bamboo pipe
should not exceed 1.5 meters, high temperature resistant pipe and
hose should not exceed 2M. (depending on model)
Q: What is the smoking hood made of? Can it withstand high
temperature? What are their characteristics?
A: Smoking cover silica gel, acrylic, aluminum alloy a total of
three materials; The flexibility of silica gel material can
withstand the temperature of about 400 degrees, and the cigarette
butts are not bad. And acrylic material light transmittance is
good, but not high temperature resistance; Aluminum alloy is light,
beautiful, high temperature resistant, high price.
Q: What are the diameter specifications of smoking pipe?
A: Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm,
120,160,200,300 is usually a PVC material. It can also be
customized according to the diameter of the on-site pipeline.

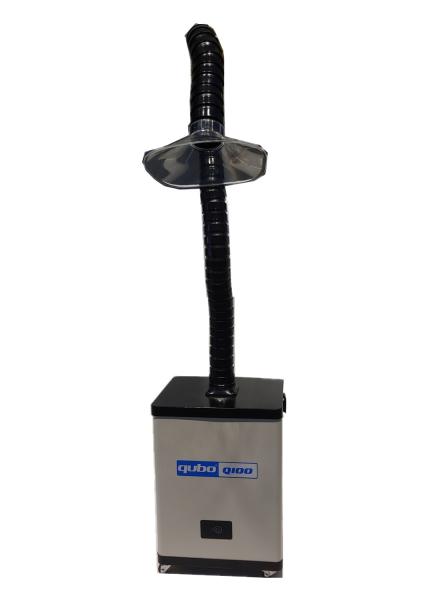

Product picture:
