Welding Soldering Machine Fume Extractor With Two Suction Tubes
Dark Mental Cover Great Negative Pressure
Features:
1.Noise canceling design low noise,the volume is about ordinary
speech,More quiet workshop.
2.Replaceable tube and hood,choice suitable accessories, various
specifications tube and materials hood.
3.Special alloy impeller, anti-corrosion, stable operation4.All
three filters can be replaced separately
5.Removabel hook and cover,replace the filter and check the
condition easyier
Instructions:
| Power(W) | 200 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 150*2 |
| Noise(db) | <55 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4500 |
| Wind spped(m/s) | 11.5*2 |
| Weight(kg) | 13 |
| Negative pressure(pa) | 2200 |
Advantages:
1.Rapid purification by multi-layer filtration
2.Universal smoking arm, random orientation positioning
3.Durable mental frame structure,firm and unshaped
4.Compact design machine with 4 universal wheel under,easy to move
and storage
FAQ
Q:If the influence of fans and air conditioners is unavoidable,
what methods can be used to solve the problem?
A:Use a smoking hood to block the influence of peripheral wind (air
flow) on it
Q:How far is the smoke cover from the smoke point of the smoke
purification system better?
A:Smoking cover (mouth) with the distance of unborn smoke point is
better in 5-15 cm.
Q:Can the filter element be replaced separately?
A:Yes, each layer can be replaced independently
Q:Is it difficult to install the product? Do you need a
professional to install it?
A:Small equipment refer to the manual, connected to the power
supply can be used. No professional installation is required. Large
equipment XL-3000/XL-5000 will be installed by professional
personnel on site.
Q:Is the purified air discharged indoors or outdoors?
A:Both indoor and outdoor, according to your requirements, usually
indoor, our products are in line with the indoor emission
standards.
Q:Can the purified air meet the requirements of the environmental
assessment?
A:The purified air is 300 to 500 times cleaner than the air we
breathe normally. The products have passed the "CE" certification
and "PONY" test of the European Union, and meet the requirements of
environmental assessment and export standards.
.

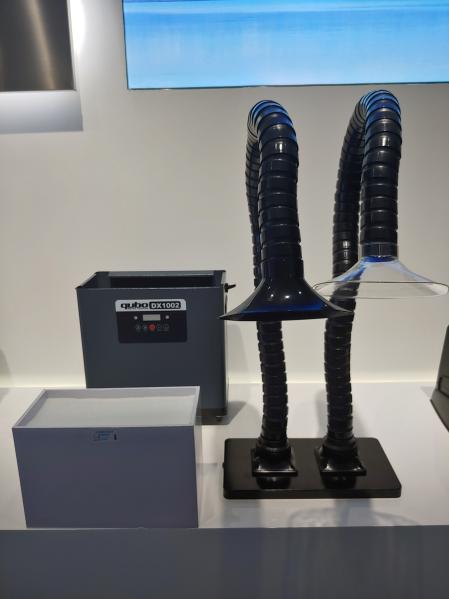

Product part picture:
