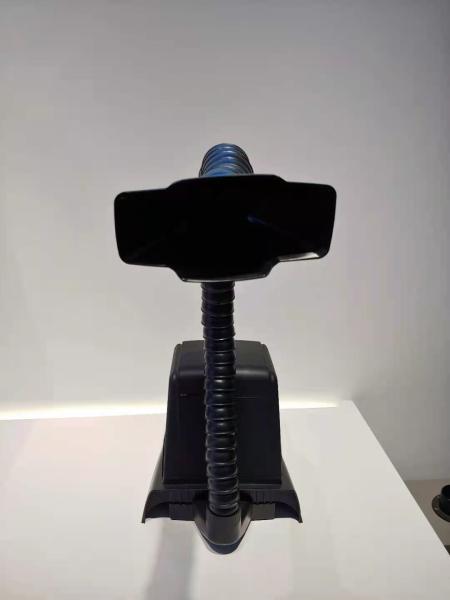

Hand Welding Lab Welding Fume Extractor Mini Size Portable Movable
Desk Purifier With 3 Levels
Features:
1,Universal smoking arm,easy to operate
2,Intergrated ac fan,high negative pressure
3,Noise canceling design,quieter working place
4,We are using HEPA h13 degree filters, 0.3 um pollution items
filter rate is 99.99%;
5,Replaceable efficient filter
Instructions:
| Power(W) | 35/60/80 |
| Dimension(mm) | 300*270*300 |
| Air Flow(m3/h) | 75/100/110 |
| Noise(db) | <52/57/59 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind speed(M/S) | 17 |
| Weight(kg) | 4.5 |
| Negative pressure(pa) | 1000-2000 |
Advantages:
1,Our machine can maximize to use the filters;
We are using different layers filters to collect different size
level of pollution.
2,Layers of different filters, clean air fasters and more
efficient;
Our product combined pre-filter and HEPA filter and active carbon
filter, make it easier to clean air and in a very efficient way.
3, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display,
and can be controlled by touch screen and can be remote in a
distance.
4, The fume tube can be randomly rotate, and can be fix in any
position;
5,All mental material shell, durable and sturdy;
We using bamboo shape tube and 360°rotation support tube, to make
the machine position very flexible during work.
FAQ:
Q:Is it difficult to maintain?
A:Check whether the pipe and interface are sealed, and replace the
filter element regularly.
Q:Can it be used in extremely humid or corrosive environment?
A:No, because in a particularly humid environment, moisture or
corrosive gas will damage the filter element and the internal
components of the machine; but usually in spring, humid weather,
such as "southerly days", will not affect the use.
Q:Can it be used in high temperature environment?
A:The high temperature should be divided into instantaneous high
temperature and long-term high temperature, the temperature within
60 degrees can be used; the temperature over 60 degrees for a long
time is not recommended, because it may lead to fire.
Q:When the filter element needs to be replaced, will it give an
alarm?
A:The indicator light of digital display control panel will flash
red light and give out alarm sound.
Q:Can the pipe of smoke and dust move back and forth with the laser
head?
A:In principle, it can, but it can't if auxiliary gas is needed
Q:Can water cutting match your purifier?
A:No, because the humidity of the gas and dust inhaled by the air
inlet is 40% - 80%, too high humidity will cause the filter element
to fail quickly and the circuit inside the machine to be damaged.

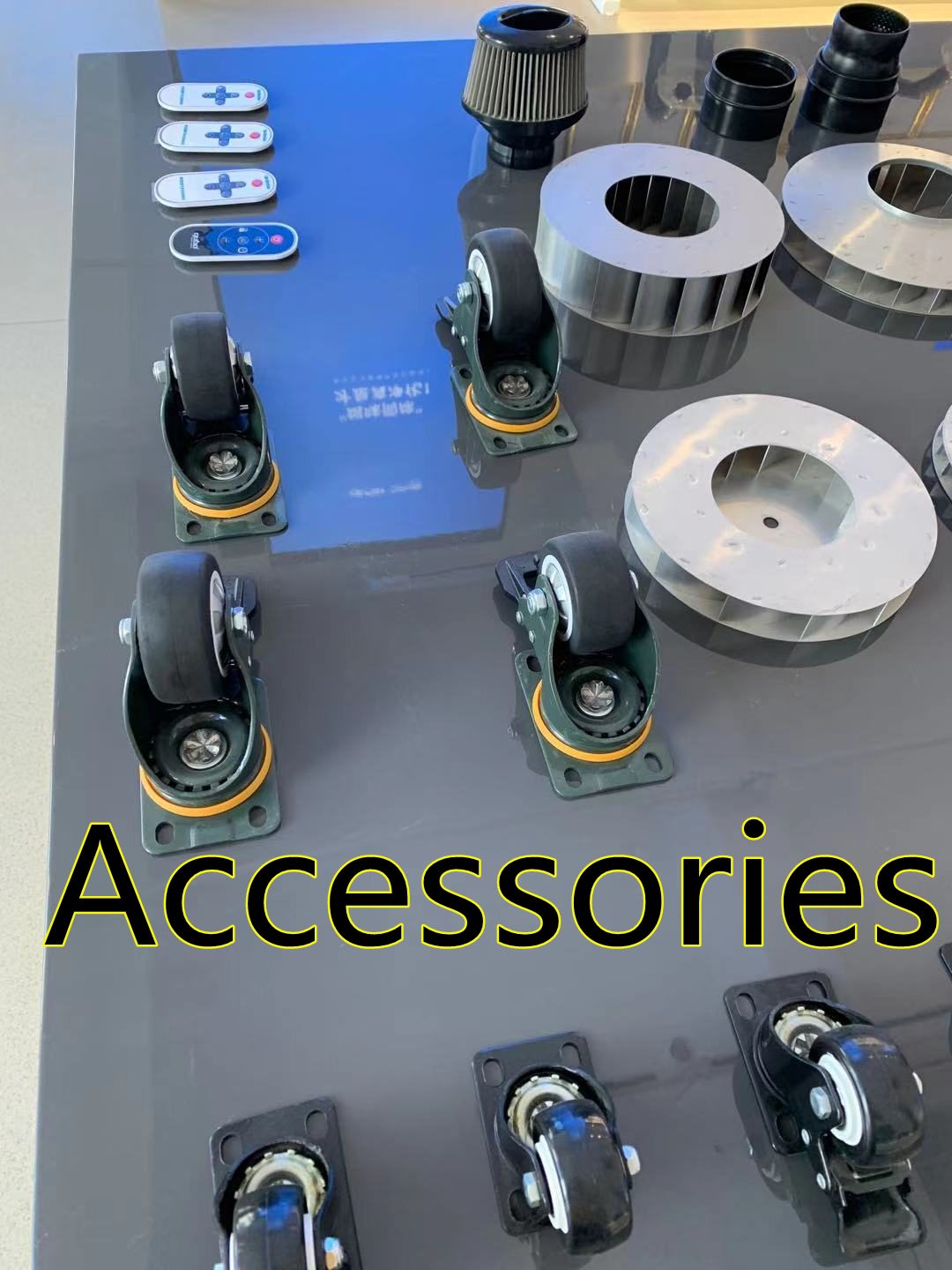

Product part picture:
