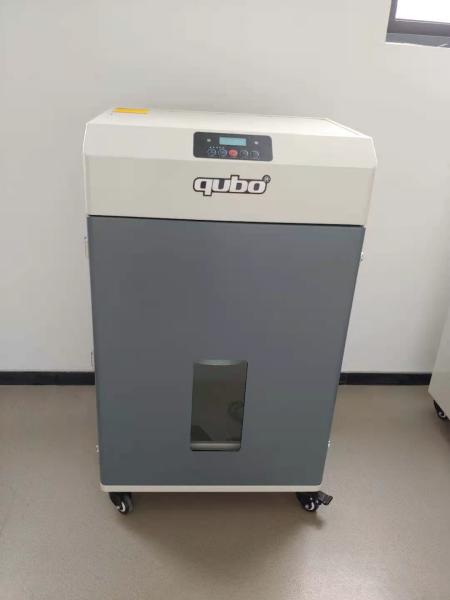

Laser Cutting Polishing Dust Collector Extractor Openable Front
Cover With Observing Window
Features:
1.Multiple filtration ensures complete purification of harmful
smoke and dust
2.Noise canceling design,quieter working place
3.Microcomputer chip control, safe and efficient, stable and
durable, more secure remote control operation
4, Multilayer filter design,make sure more thorogh purification
5,Brushless DC moter,stable long service life
Instructions:
| Power(W) | 350w |
| Dimension(mm) | 550*415*920 |
| Air Flow(m3/h) | 480 |
| Noise(db) | <70 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4200 |
| Wind spped(m/s) | 21 |
| Weight(kg) | 42 |
| Negative pressure(pa) | 2500 |
Advantages:
1.Removabel hook and cover,change the filter and check the filter
condition easyier
2.Durable mental frame structure,firm and unshaped,small footprint
3.Compact design machine with 4 universal wheel under,easy to move
and storage
4.Portable tube and hood,choice suitable accessories, various
specifications tube various materials hood.
5.Noise canceling design low noise,only the volume of ordinary
speech,More quiet workshop, reduce the surrounding complaints.
FAQ
Q:Does the size of the pipe affect the effectiveness of smoking?
A:Yes, and the impact is very large, because the increase of the
bend resistance will be stronger, resulting in the weakening of
suction, should be as far as possible to reduce the bending of the
pipeline.
Q:Is the product influenced by the environment that affects the
smoking effect?
A:Yes, such as fan flow, air conditioning (air flow); Long
distances can also seriously affect the effects of smoking
Q:If the influence of fans and air conditioners is unavoidable,
what methods can be used to solve the problem?
A:Use a smoking hood to block the influence of peripheral wind (air
flow) on it
Q:How far is the smoke cover from the smoke point of the smoke
purification system better?
A:Smoking cover (mouth) with the distance of unborn smoke point is
better in 5-15 cm.
Q:Can the filter element be replaced separately?
A:Yes, each layer can be replaced independently
Q:Is it difficult to install the product? Do you need a
professional to install it?
A:Small equipment refer to the manual, connected to the power
supply can be used. No professional installation is required. Large
equipment XL-3000/XL-5000 will be installed by professional
personnel on site.
Q:Is the purified air discharged indoors or outdoors?
A:Both indoor and outdoor, according to your requirements, usually
indoor, our products are in line with the indoor emission
standards.

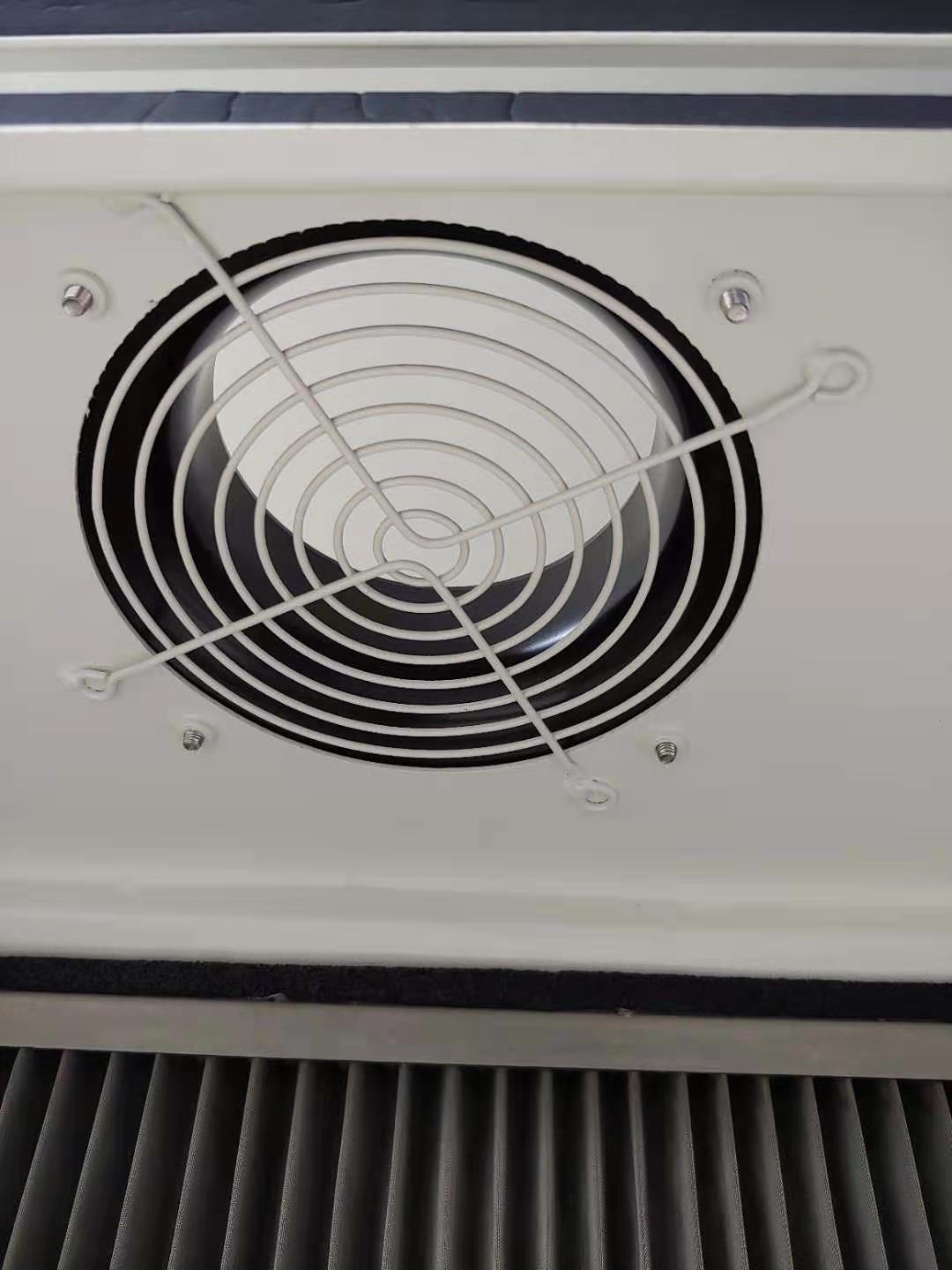

Product part picture:
