Flexible Soldering Fume Extractor For Work Table With Bamboo Shape
Tube
Features:
1, We are using HEPA h13 degree filters, 0.3 um pollution items
filter rate is 99.99%;
2, Our machine can maximize to use the filters;
We are using different layers filters to collect different size
level of pollution.
3, Assembled with DC brushless motor, which will have more stable
performance and longer life;
4, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
5, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust,
and PP HEPA filter and active carbon filters to remove bad gas.
6, Portable because it assemble with 4 wheels;
7, No need to assemble, plug and turn it on, start to work;
Instructions:
| Power(W) | 35/60/80 |
| Dimension(mm) | 300*270*300 |
| Air Flow(m3/h) | 75/100/110 |
| Noise(db) | <52/57/59 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind speed(M/S) | 17 |
| Weight(kg) | 4.5 |
| Negative pressure(pa) | 1000-2000 |
Advantages:
1, Pre-filter, Middle filter and high efficient filter can be
replaced independently, very convenient and easy to do the replace
job.
2, The fume tube can be randomly rotate, and can be fix in any
position;
We using bamboo shape tube and 360°rotation support tube, to make
the machine position very flexible during work.
3, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
4,The machine have back blowing system, which can easily clean dust
on the filters;
Cylinder filters assemble with pulse back blowing system, easy to
clean filters and make the filters reusable.
5, The machine is in a very small dimension, never occupying space;
6, The fan speed is adjustable, timing function to turn on and off,
and remote control;
FAQ:
Q: Are you a manufacture or trade company?
A: We are the biggest manufacture for the fume extractor in China,
and focus on the Laser, soldering machine fume clean more than 15
years.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different.
Fume extractor is more professional in clean fume, dust and bad
smells.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection
every week.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship
to you whthin 1 week.

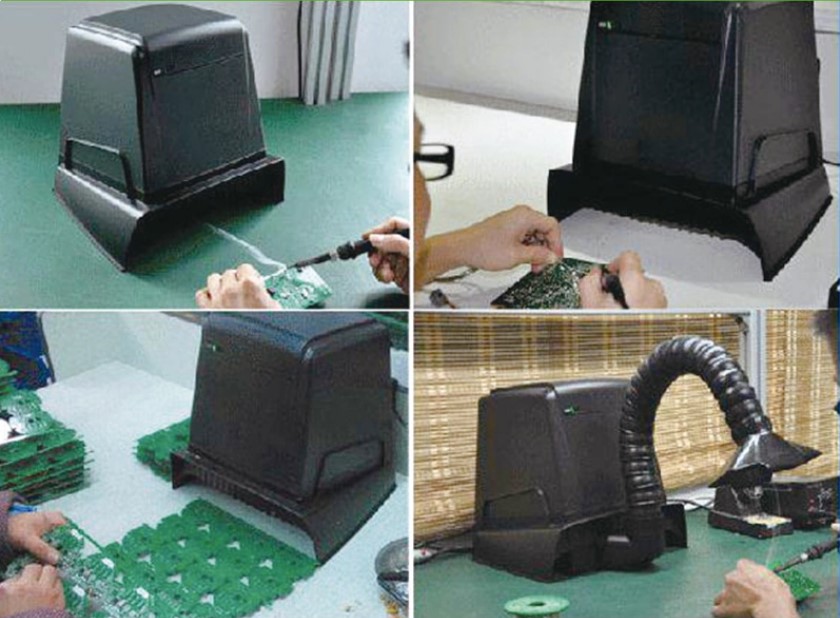

Product pictures:
