Laser Marking Cutting Welding Smoke Purifier With Two Portable
Suction Tube Lightweight With Hepa Filter
Features:
1 Easy to set tp and use, do not need professionl to install, with
replaceable filter,save more service life.
2 Self-developed brushless dc motor,no need to change carbon
brush,save more power consumpution,able to working 40000hours
continuously
3 wide range of application lasering welding beauty salon,has 4
whells easy to move and opreation
4.Replaceable tube and hood,choice suitable accessories, various
specifications
5.Noise canceling design low noise,the volume is about ordinary
speech,More quiet workshop.
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1. High negative pressure, high flow, small volume, light weight,
easy installation, flexible filter replacement.
2. Long service life, low cost, continuous 24-hour work, can use
40000 hours (i.e. normal use for eight to ten years)
3. Low cost basis: as low as 1.85 yuan / day (8 hours / day)
4. Multi layer filtration, rapid purification, filter failure sound
and light alarm.
5. Independent research and development of hall less brushless DC
motor, high efficiency, long life, zero consumables and zero
maintenance, support continuous 24-hour use.
FAQ:
Q:What are the application fields of your products?
A:Laser marking, laser welding, laser coding, laser cutting, laser
cladding, laser cleaning, grinding, polishing, drilling and so on
Q:How does it work?
A:Physical principle: interception → activated carbon adsorption →
clean air through layers of filters
Q:What is the approximate life of the product in continuous
operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be
broken, need to consider environmental factors. Usually for 4-5
years it won't be a problem
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm
bamboo joint pipe is standard for 1.2m. (Soft pipe and high
temperature pipe are configured according to customer needs, but
the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long
fixation is relatively poor, because there is no support point,
easy to sag, it is recommended that the length of bamboo pipe
should not exceed 1.5 meters, high temperature resistant pipe and
hose should not exceed 2M. (depending on model)

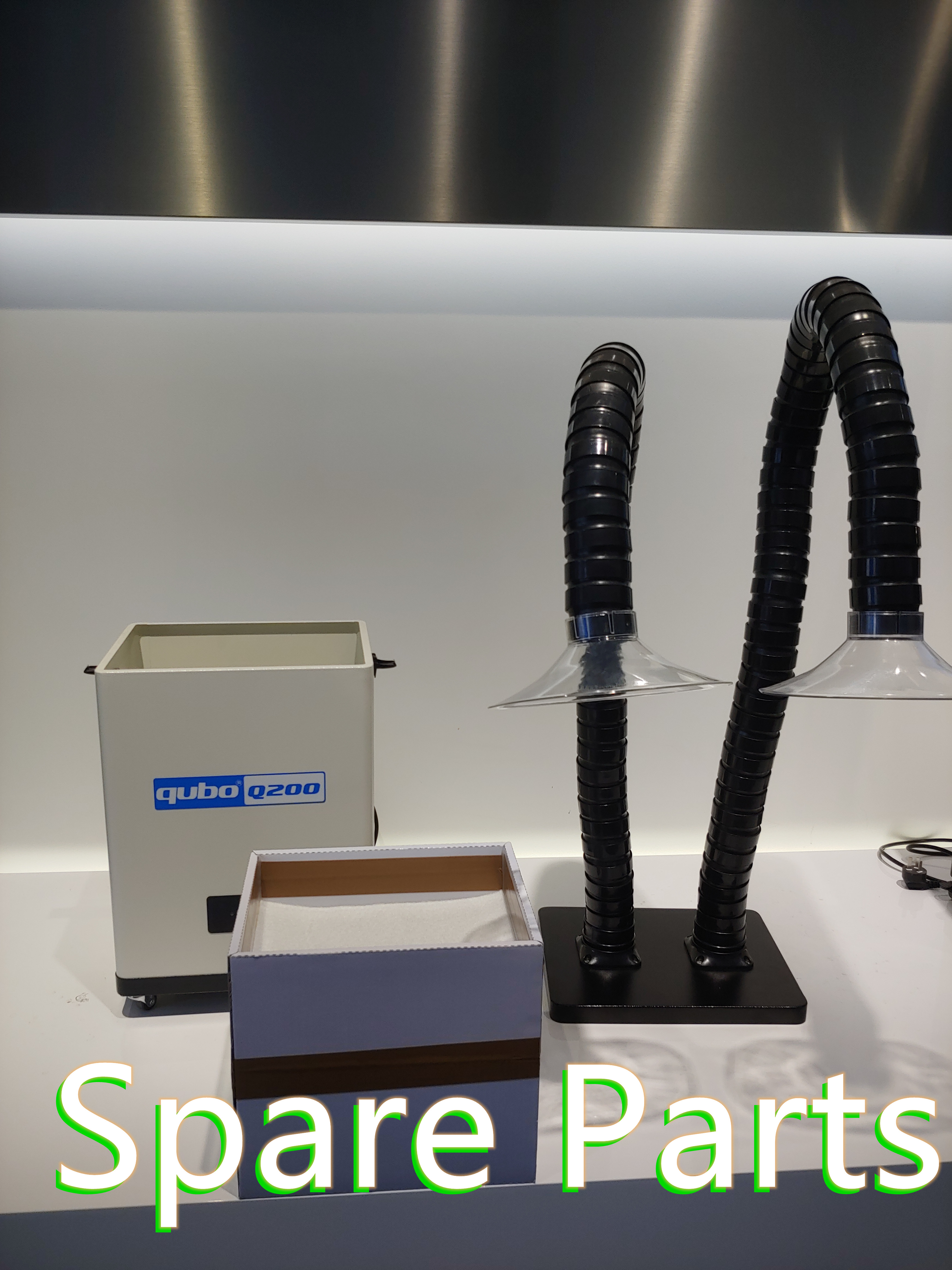

Product part picture:
