Solder Fume Extractor For Welding Air Filter With 8 Layers Filters
Description:
1, Our machine can maximize to use the filters;
We are using different layers filters to collect different size
level of pollution.
2, The fume tube can be randomly rotate, and can be fix in any
position;
We using bamboo shape tube and 360°rotation support tube, to make
the machine position very flexible during work.
3, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
4, Saving energy and cost, lower noise and larger suction power;
5, The filter element adopts a return structure and can hold dust
on all sides;
Applications:
Laser Marking, Laser Cutting, Laser Engaving
Specifications:
| Model | FL600W |
| Air intake interface | 90mm |
| Filter layer | 8 |
| Weight | 75kg |
Dimensions (L*W*H) | 550*430*1100mm |
| Air Flow | 620m³/h |
| Air Speed | 23m/s |
| Noise | <65dB |
| Power | 680W |
| Filtering effect | 0.3μm-99.97% |
| Voltage | AC 110-220V |
| Fire proof net | 1 layer |
| 2.Primary efficiency filtration cotton | 365*180*55 (mm) |
| 3.Medium efficiency filtration cotton | 365*175*55(mm) |
| 4 Hepa filter | 365*195*250(mm) |
| 5-8 active carbon filters | 365*195*250(mm) |
| UV-LIGHT | 100W |
Features:
1, We are using HEPA h13 degree filters, 0.3 um pollution items
filter rate is 99.99%;
2, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem
happened if the machine is out of work.
3, The machine is in a very small dimension, never occupying space;
4, No need to assemble, plug and turn it on, start to work;
5, There is a watch window, from which we can easily notice the
filter situation and whether it should be replaced or not;
FQA:
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more
than 500 workers.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection
every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship
to you whthin 1 week.

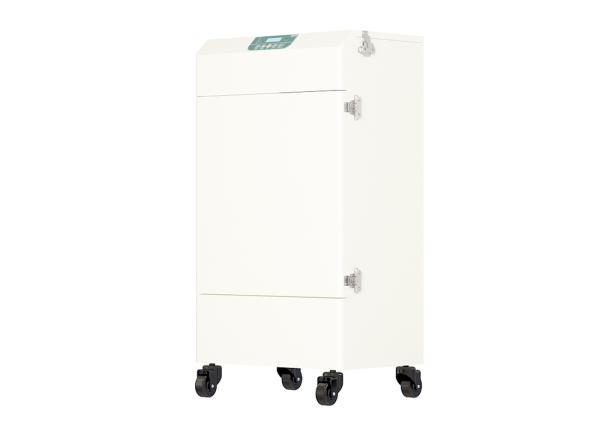

Picture:
