Portable Welding Fume Extractor With Double Flexible Extraction
Arms Mobile Purifier
Features:
1, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem
happened if the machine is out of work.
2, There is a watch window, from which we can easily notice the
filter situation and whether it should be replaced or not;
3, Imported integrated AC fan, stable performance and longer life;
4, The machine is in a very small dimension, never occupying space;
5, The fan speed is adjustable, timing function to turn on and off,
and remote control;
Specifications:
| Model | Fume extractor FL350C-1 |
| Power | 330 W |
| Air flow | 350 m³/h |
| Dimension | 400*300*360 mm |
| Voltage | 110/220 V |
| Noise | 63 db |
| Weight | 15 kg |
| Filters | 4 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 365*175*55 mm 3-6 months |
| HEPA filter | 365*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
Air flow speed
| 18m/s |
| No load Speed | 6500rpm |
| Negative pressure | 2400Pa |
| Air inlet port | 1*75mm |
Advantages:
1, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
2, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust,
and PP HEPA filter and active carbon filters to remove bad gas.
3, Portable because it assemable with 4 wheels;
4, No need to assemble, plug and turn it on, start to work;
5, Assembled with DC brushless motor, which will have more stable
performance and longer life;
FAQ:
Q: Are you a manufacture or trade company?
A: We are the biggest manufacture for the fume extractor in China,
and focus on the Laser, soldering machine fume clean more than 15
years.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: How long will the machine keep work?
A: At least 8 years.
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.

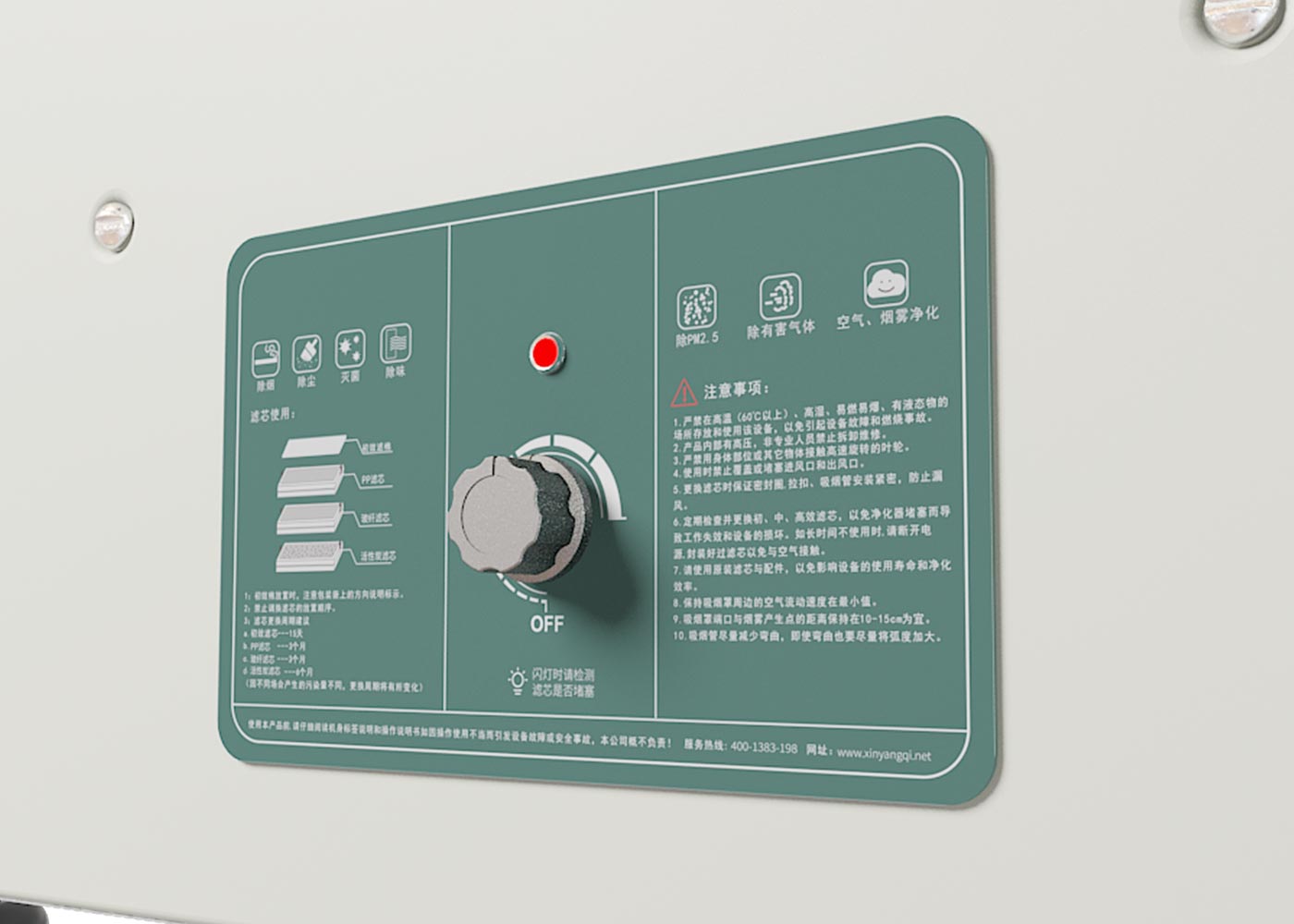

Product picture:
