Double Arms Fume Extractor Laser Smoke Welding Smoke Absorber
Instruction:

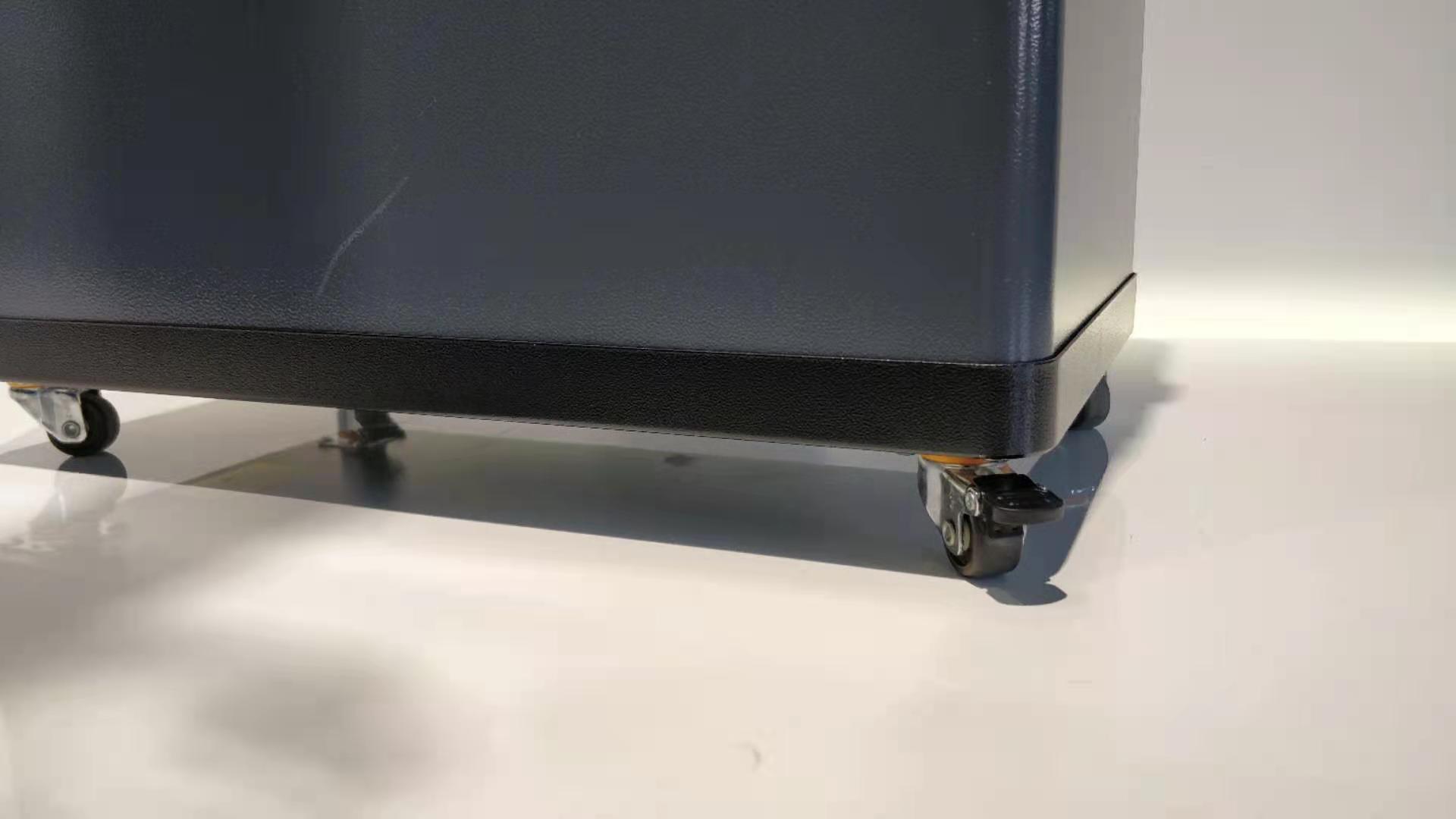

1, Portable because it assemble with 4 wheels;
2, High negative pressure;
3, The machine is in a very small dimension, never occupying space;
4, No need to assemble, plug and turn it on, start to work;
5, The filter element adopts a return structure and can hold dust
on all sides;
6, The fan speed is adjustable, timing function to turn on and off,
and remote control;
Specifications:
| Model | Fume extractor FDL1002 |
| Power | 200 W |
| Air flow | 150 m³/h * 2 |
| Dimension | 420*245*400 mm |
| Voltage | 110/220 V |
| Noise | 55 db |
| Weight | 13kg |
| Filters | 3 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 360*170*55 mm 3-6 months |
| HEPA filter | 385*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
Features:
1, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem
happened if the machine is out of work.
2, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow.
3, Saving energy and cost, lower noise and larger suction power;
4, There is a watch window, from which we can easily notice the
filter situation and whether it should be replaced or not;
5, It is also a dust collector, bad smell remover, and fire proof;
FAQ:
Q: Are you a manufacture or trade company?
A: We are the biggest manufacture for the fume extractor in China,
and focus on the Laser, soldering machine fume clean more than 15
years.
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more
than 500 workers.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different.
Fume extractor is more professional in clean fume, dust and bad
smells.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection
every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place,
air flow near, length and diameter of the tube,.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost,
convenient to use, air clean efficiency, keep your staff heathy and
so on.
Product picture:
