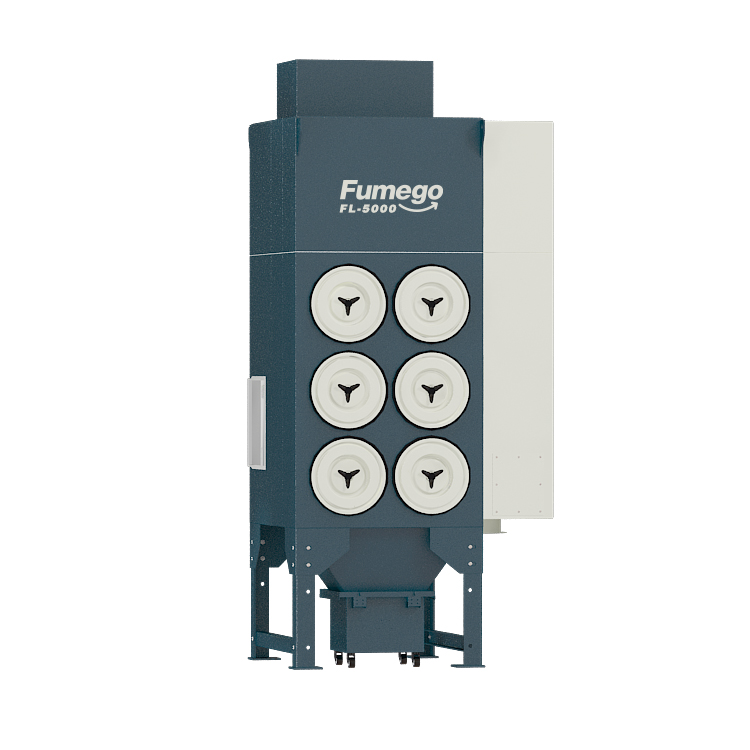

High Power Laser Dust Collector With 6 Cylinder Filter And Active
Carbon Filter
Application: Explosion Risk Dust Extractor
Instruction:
Pulse back blowing function
High quality, long life, high negative pressure
Large flow rate, long service life of filter element and good
filtering effect
Field of application:
Medium and large laser cutting, medium and large laser welding
Product function:
Metal frame body structure, durable
Pulse back blowing function, longer service life of filter element
table and reliable operation, large suction air flow
Dust collection and filtration, fume filtering
Active carbon deodorization,
Flame retardant filter cartridge
Specifications:
| Power(w) | 7500 |
Dimension mm(l*w*h) | 1400*1280*3245mm |
| Air Flow(m3/h) | 7500 |
| Noise level (db) | <76 |
| Voltage(v) | AC380V/220/50Hz/60hz 3phse |
| No load sped(r/min) | 2950 |
| Single port speed(m/s) | 18 |
| Weight(kg) | 880 |
| Negative Pressure(pa) | 3000 |
Consumption filters
| (P)filter layers | 7 |
inner machine Replace time | Flame retardant carltridges *6
324*213*660 3-6 months |
inner machine Replace time | Active carbon filters 660*523*200mm 6-12 months |
Features:
1, The machine have back blowing system, which can easily clean
dust on the filters;
Cylinder filters assemble with pulse back blowing system, easy to
clean filters and make the filters reusable.
2, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust,
and PP HEPA filter and active carbon filters to remove bad gas.
3, Our machine can maximize to use the filters;
We are using different layers filters to collect different size
level of pollution.
4, Using noise reduction structure design, to keep working
environment quiet;
5, It can be used for fumes comes out from 3-4 Laser equipment in
the same time.
FAQ:
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different.
Fume extractor is more professional in clean fume, dust and bad
smells.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Whats more, Our product have several layers of filters and special
active carbon filter which can highly remove bad smells and
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection
every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years
after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place,
air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
