Industrial Portable Powder Dust Collector Machine For Woodworking 4500cfm Bag House With One integrated Filter

Features:

Instructions:

Advantages:

1, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4, Saving energy and cost, lower noise and larger suction power;

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

6, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

Introduce:

Panel lock button
When the machine is working, press this button, all the function on the operation panel of the
machine will be locked. Press this button again or disconnect the power supply of the machine
and restart the machine it can be removed.

Set button
When the machine enters the alarm state and the buzzer sounds, press this button once to
disactivate the buzzer sound. When the alarm is not entered, this key is used to inquire the total
running time of the whole machine.

Timer shutdown button
When the machine is running, press this button to display HXXX on the digital tube display
screen, and then press the wind speed increase or decrease to adjust the timing off. When setting
the timing, press the timing button to adjust the shift of the number of times, ten, and hundreds
of digits. After setting, press OK/ Set button to confirm the end of the timing device. XXX
represents the number of hours the machine runs regularly, with a maximum of 300 hours and a
minimum of 1 hour. After setting, press the timing key to check the remaining time of the timing.
Digital tube display long display HXXX, such as H005 represents 5 hours after the automatic
shutdown, set the time to H000, can cancel the timing.

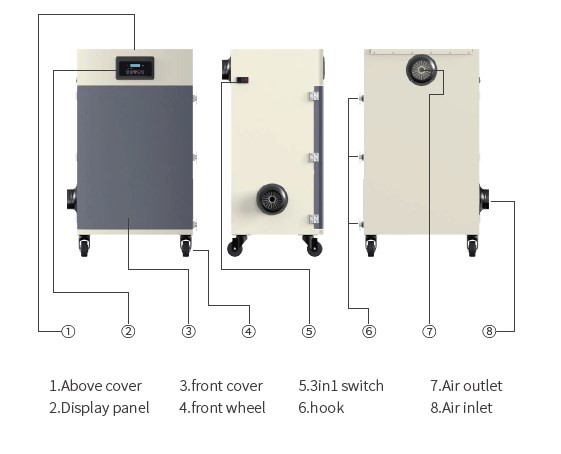

Product part picture:

    Fumego has become a leading manufacturer of fume extractors, which are widely used for eliminating Solder Fumes, Laser Fumes, Welding Fumes, Beauty Fumes, Medical Fumes, 3D Printing Fumes, etc. We own several brands: FUMEGO NEWOXY, QUBO, etc. FUMEGO Focus in really effective Fume Extractors only. Our superiority in technology and high quality has gained the leading position in the air purifying industry. The factory has passed the ISO9001 quality system certification, and the products have passed the CE, pony, ATS testing and RoHS certification. The company has obtained more than 60 patents. The filtering efficiency of our Fume Extractors has reached the top standard in the world.

    We have been providing our fume extractors to a number of Global Top 500 Companies, such as Samsung, LG, Philips, ABB, Bosch, Honeywell, Panasonic, Toshiba, Nikon, Yamaha, Huawei, Foxconn, Vtech, etc. Fumego are getting popular in many countries all over the world. Currently, our products have been exported to USA, Canada, Germany, Israel, Italy, Korea, India, Southeast Asia, South American and so on

Our mission is to continue to be the innovator of green industry and let the fumes go! Welcome to join us and work together for the improving of the human working environment.

Our main product:
