Explosion Proof Dust Collector With Auto Cleaning System Cylinder
Filters For Laser Woodworking Equipment
Application: Woodworking situation, Power dust situation and big Laser
equipment usage.
Instruction:
1,The machine have back blowing system, which can easily clean dust
on the filters;
Cylinder filters assemble with pulse back blowing system, easy to
clean filters and make the filters reusable.
2, Imported integrated AC fan, stable performance and longer life;
3, Portable because it assemble with 4 wheels;
4, High negative pressure;
5, The machine is in a very small dimension, never occupying space;
6, No need to assemble, plug and turn it on, start to work;
7, The filter element adopts a return structure and can hold dust
on all sides;
8, The fan speed is adjustable, timing function to turn on and off,
and remote control;
Specifications:
| Model | Dust Collector FL5000 |
| Dimension | 1400*1280*3245 mm |
| Voltage | 380V 50HZ |
| Power | 7500W |
| Air flow | 6000 m³/h |
| Weight | 880 kg |
| Noise | 76 db |
| Filters | 7 layers |
| Filters layers | Size and Frequency to replace |
| Fire and explosion proof | 6 layers 324*213*660 mm 3-6 months |
| HEPA and active carbon filter | 660*523*200 mm 6-12 months |
| Air speed | 18 m/s |
| HNP | 3000 pa |
Features:
1, Using noise reduction structure design, to keep working
environment quiet;
2, The fume tube can be randomly rotate, and can be fix in any
position;
We using bamboo shape tube and 360°rotation support tube, to make
the machine position very flexible during work.
3, Assembled with DC brushless motor, which will have more stable
performance and longer life;
4, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display,
and can be controlled by touch screen and can be remote in a
distance.
5, It have assemble with a very thick active carbon filters which
can highly remove bad smells and harmful gas.
FAQ:
Q: Are you a manufacture or trade company?
A: We are the biggest manufacture for the fume extractor in China,
and focus on the Laser, soldering machine fume clean more than 15
years.
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more
than 500 workers.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different.
Fume extractor is more professional in clean fume, dust and bad
smells.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Whats more, Our product have several layers of filters and special
active carbon filter which can highly remove bad smells and
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection
every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years
after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place,
air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke
cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost,
convenient to use, air clean efficiency, keep your staff heathy and
so on.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship
to you whthin 1 week.
Q: How long will the machine keep work?
A: At least 8 years.

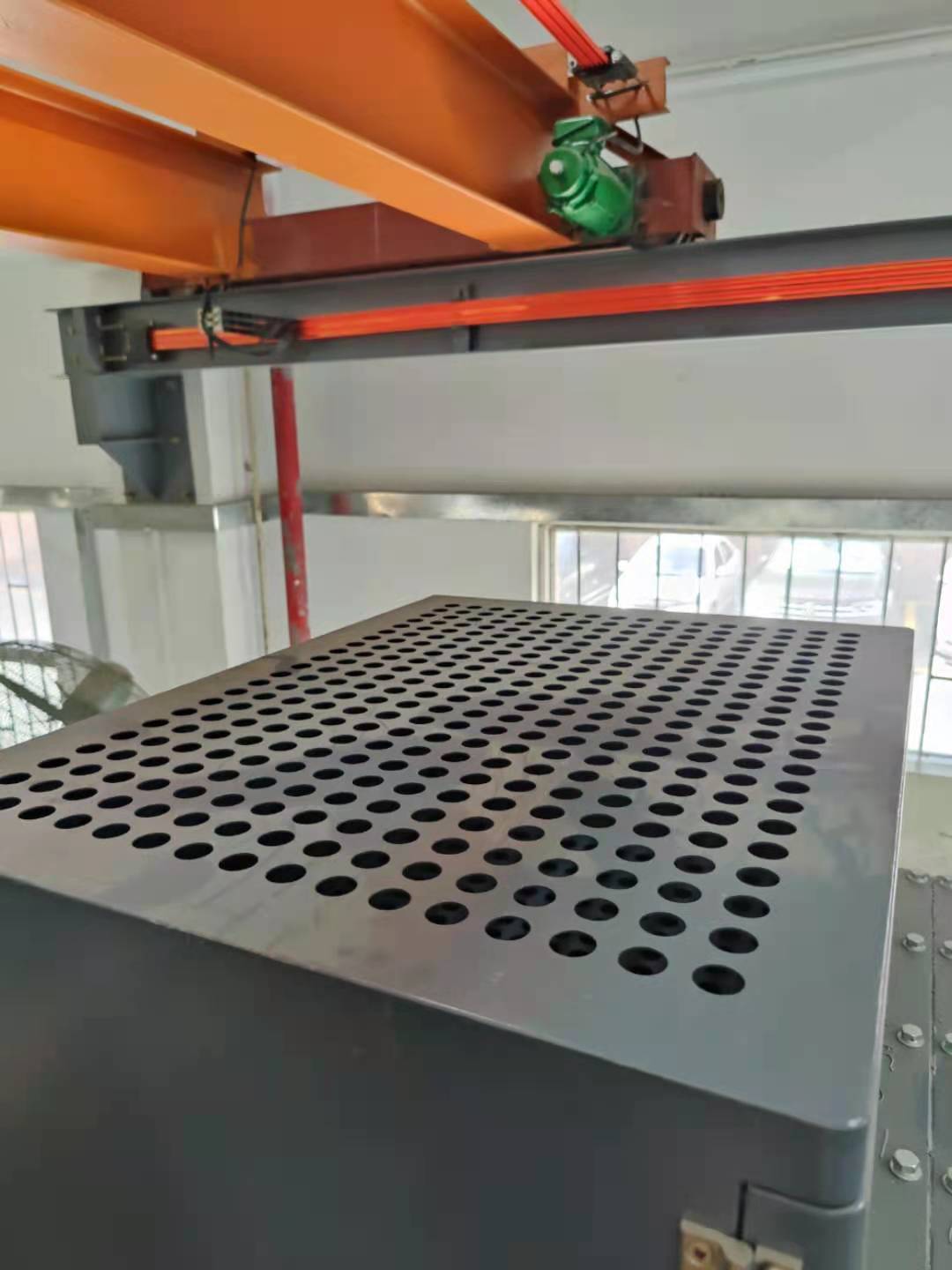

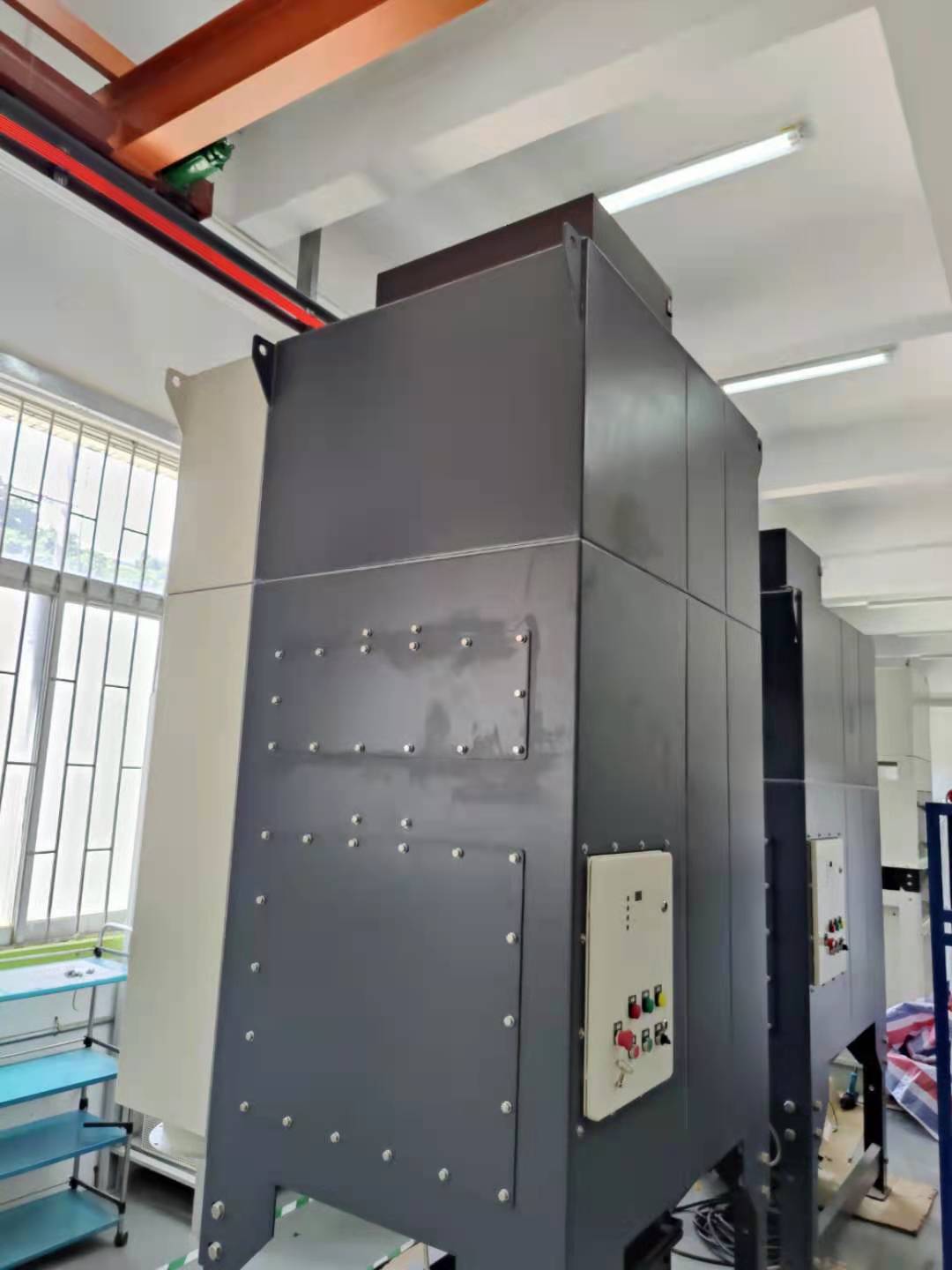

Pictures:
