Laser Marking Welding Fume Extractor Replaceable Tube Hood
Lightweight Portable Movable
Features:
1, Lightweight easy to move,strong cover structure
2, Intergrated ac fan,high negative pressure
3, Low power but high air flow
4, Replaceable efficient filter
5, Noise canceling design,quieter working place
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1, Wide range of application lasering welding beauty salon,has 4
whells easy to move and opreation
2, Various types of materials make you have more choices to smole
hood,silicone hood acrylic hood alloy hood
3, Layers of different filters, clean air faster and more
efficient;
Our product combined pre-filter and HEPA filter and active carbon
filter, make it easier to clean air and in a very efficient way.
4, Easy to set tp and use, do not need professionl to install, with
replaceable filter,save more service life.
5. Self-developed brushless dc motor,no need to change carbon
brush,save more power consumpution,able to working 40000hours
continuously
FAQ:
Q: What if it were damaged in transit?
A: We are in full charge of it. You don't need to assume any
responsibility.
Q: what are the main components of the product?
A: motor, controller, power supply, chassis, smoking tube, smoking
hood, filter element, etc
Q:How far is the smoke cover from the smoke point of the smoke
purification system better?
A:Smoking cover (mouth) with the distance of unborn smoke point is
better in 5-15 cm.
Q: Will the cost of smoke purifier be lower than that of ducted
exhaust fan (direct exhaust exhaust fan)?
A: The daily electricity charge for one station of exhaust fan is
3-5 yuan, and the daily cost of purifier is 1.85 yuan (feedback
from Changan Rihua electronics factory and Zhangmutou Bosch laser).
If it is a comprehensive consideration, the initial investment cost
of smoke purifier is higher, but the comprehensive use cost is
cheaper. You can refer to the report of comparison between ducted
exhaust fan and smoke filter commissioned by a third party.
Q: what are the types of smoking tubes in the smoke purifier? How
long is the standard configuration?
A: types are: bamboo tube, high temperature tube, hose, serpentine
tube, metal support arm (special for moxibustion); Standard
configuration: standard configuration of 75mm slub pipe is 1.4m,
standard configuration of 55mm slub pipe is 1.2m, standard
configuration of 65mm slub pipe is 1.2m, and 3 metal support arms
are 1.2m in total (hose, high temperature pipe and serpentine pipe
are configured according to customer demand).
Q: can the smoking tube be shortened or lengthened at will?
A: it can be shortened or lengthened appropriately; However, the
support is relatively poor when it is more than 2m, because there
is no support point and it is easy to sag. It is suggested that the
length of the pipeline should not exceed 1.5m as far as possible.
The total length of multi station pipeline should not exceed 10m.

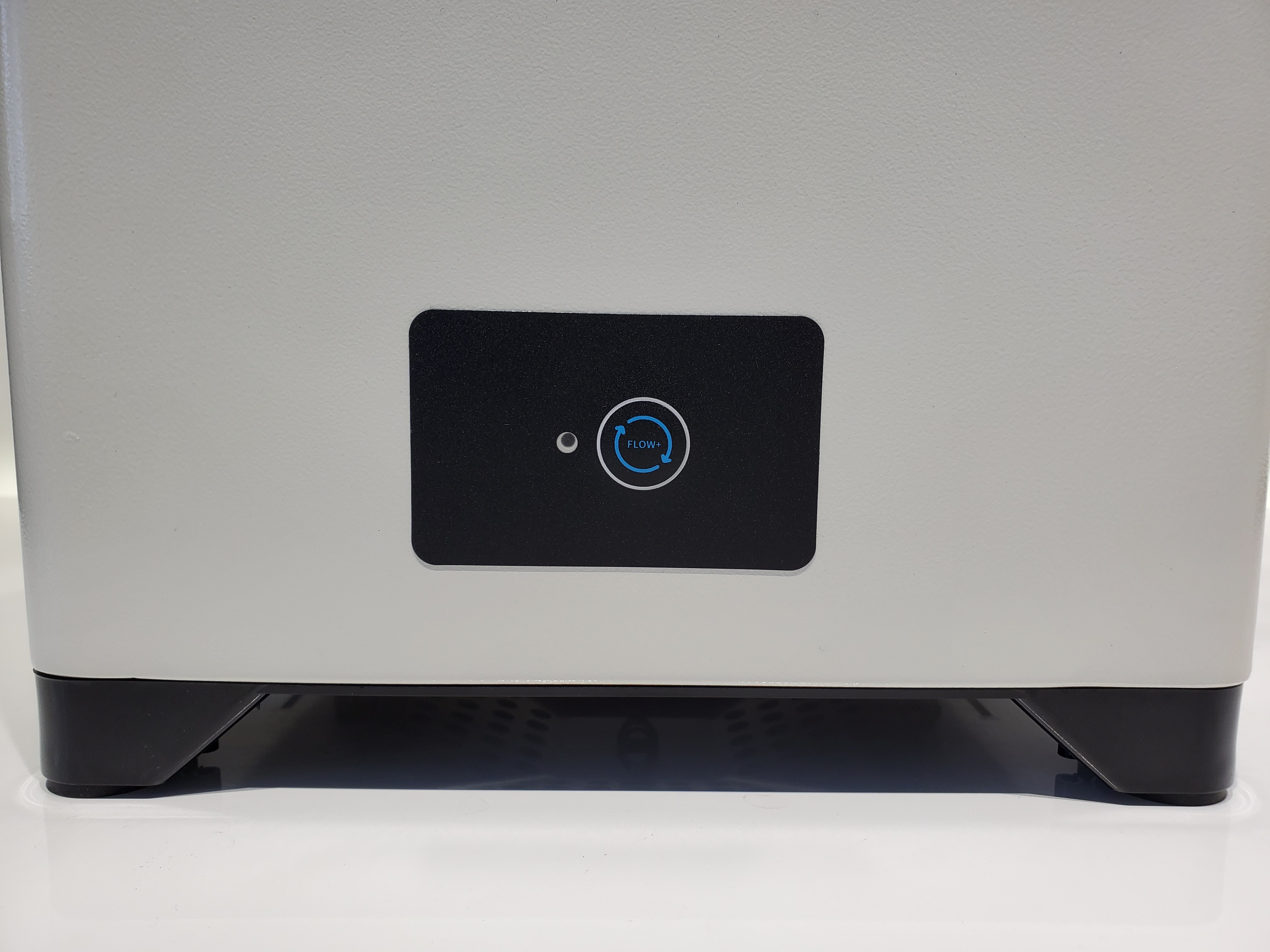

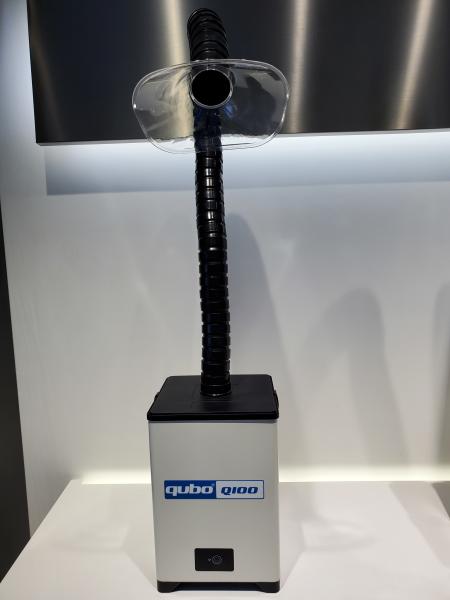

Product part picture:
